Transistor

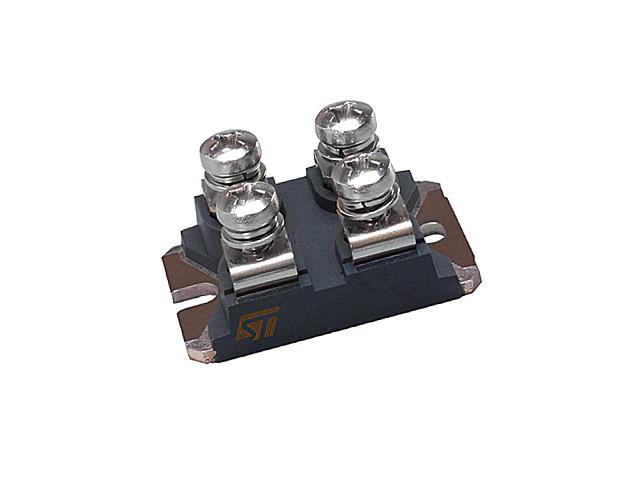

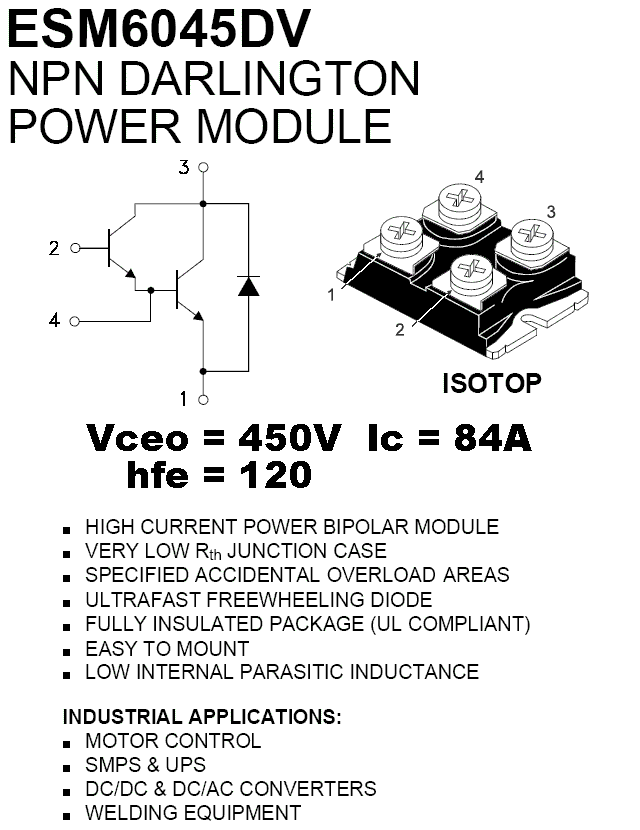

ESM6045DV

ESM6045DV (NPN Darlington Transistor)

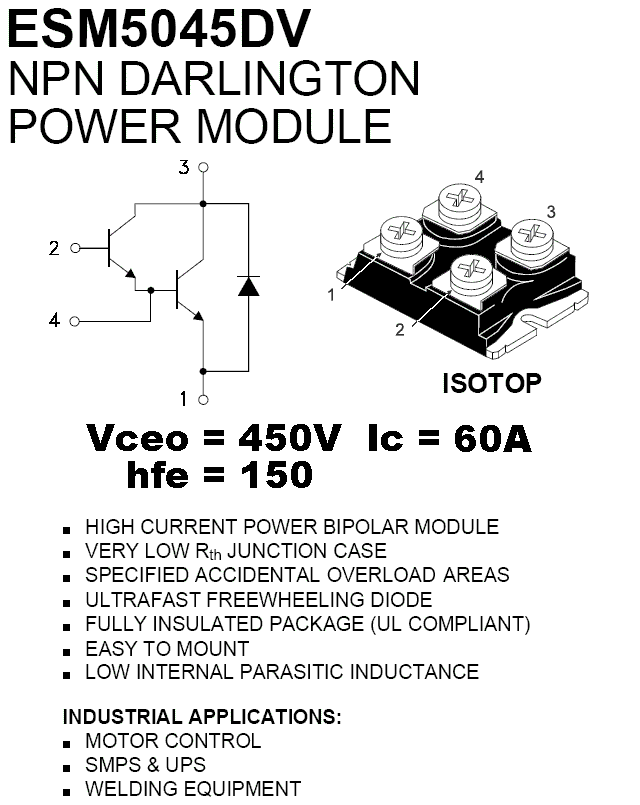

ESM5045DV

ESM5045DV (NPN Darlington Transistor)

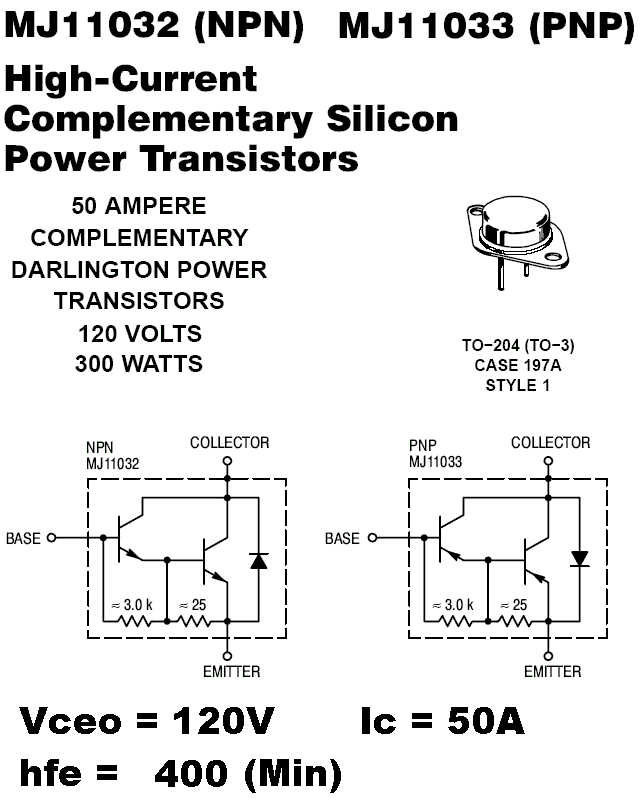

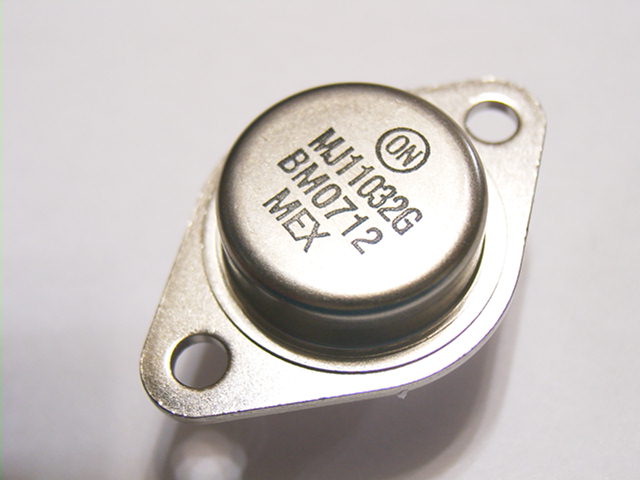

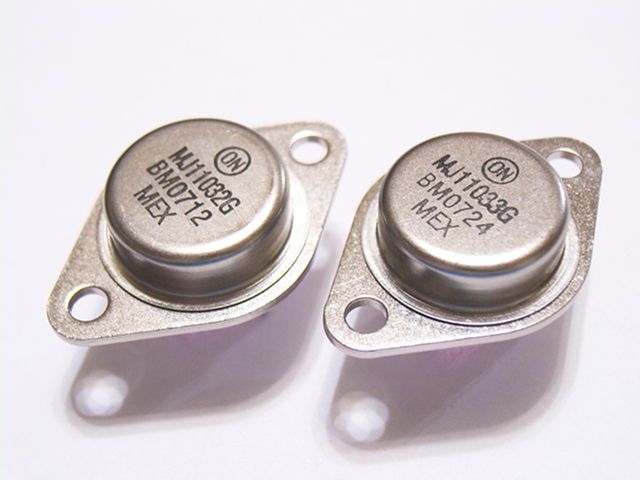

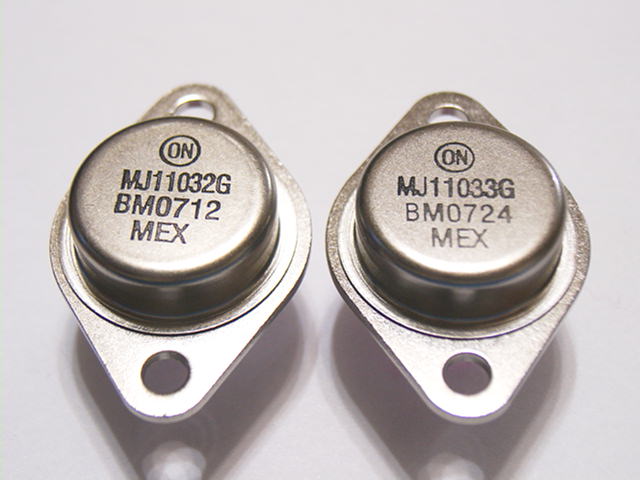

MJ11032, MJ11033

MJ11032 NPN Darlington Power Transistor

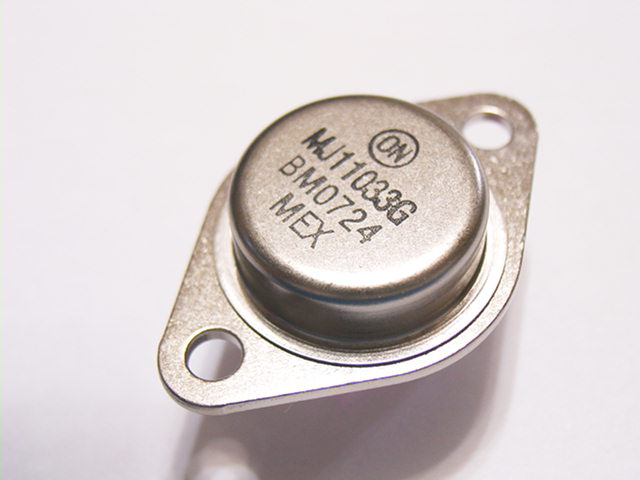

MJ11033 PNP Darlington Power Transistor

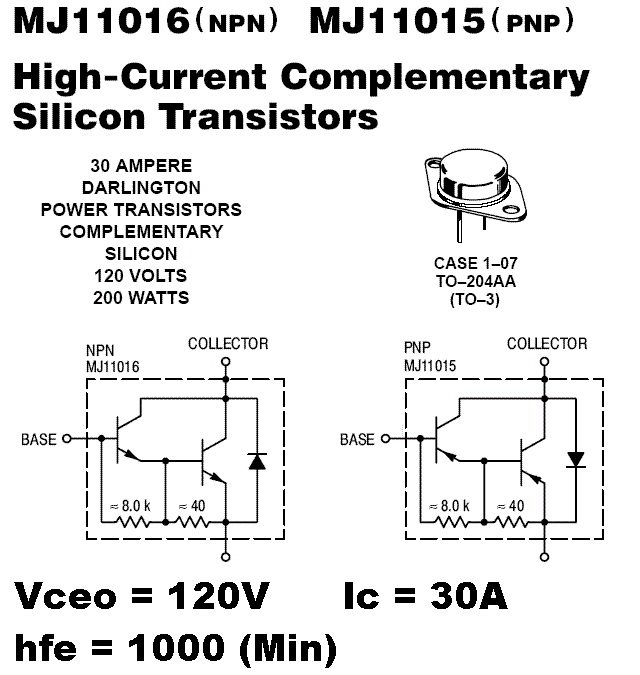

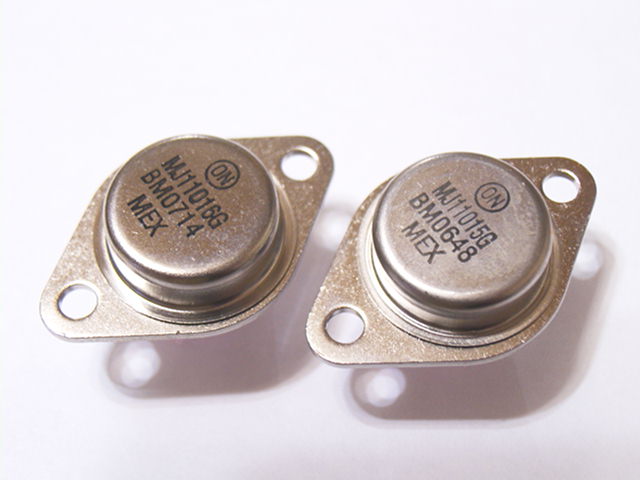

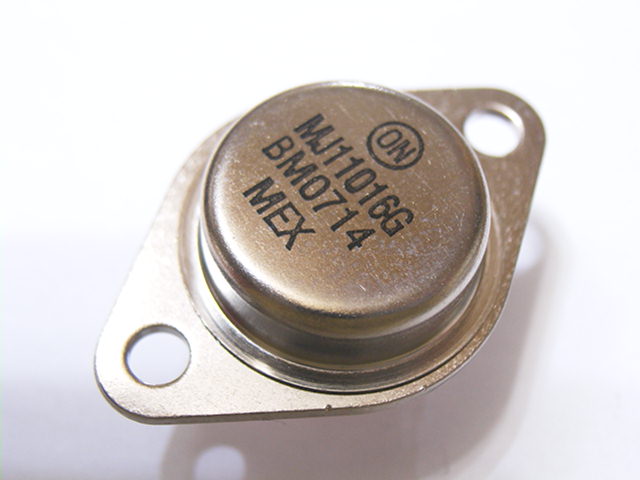

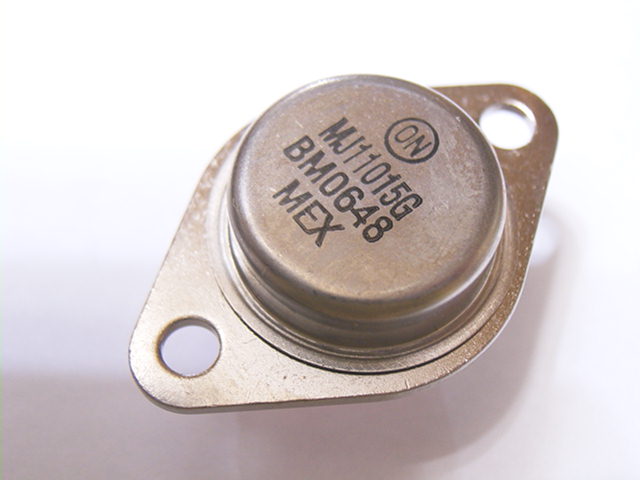

MJ11016, MJ11015

MJ11016 - MJ11015 Darlington Power Transistor

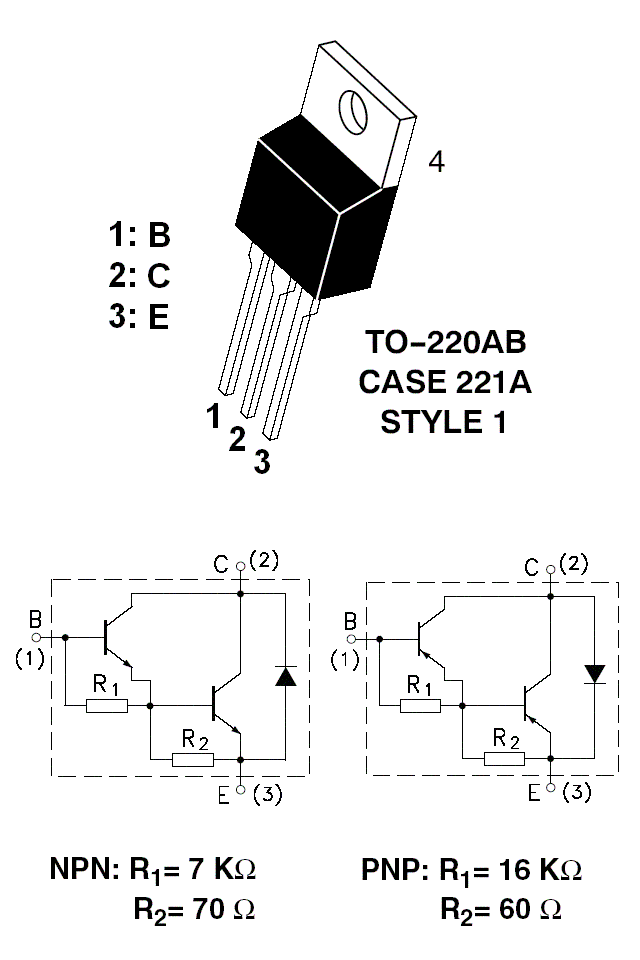

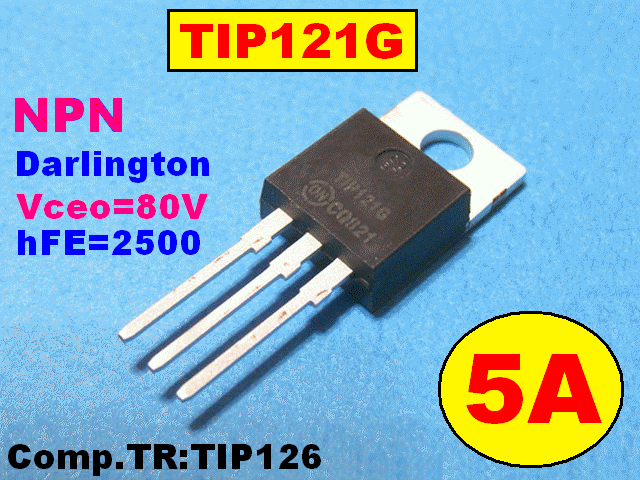

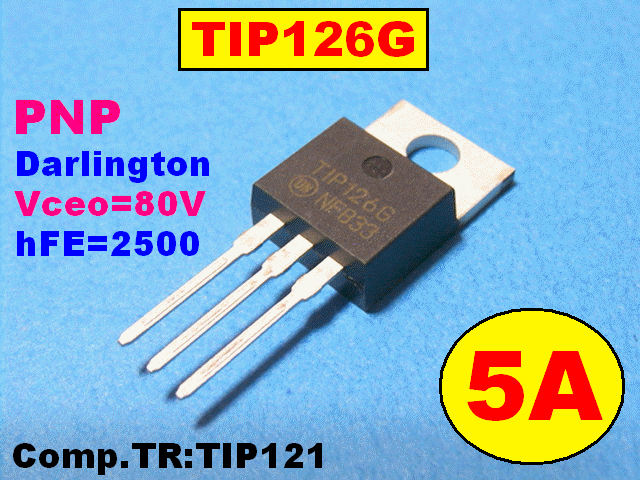

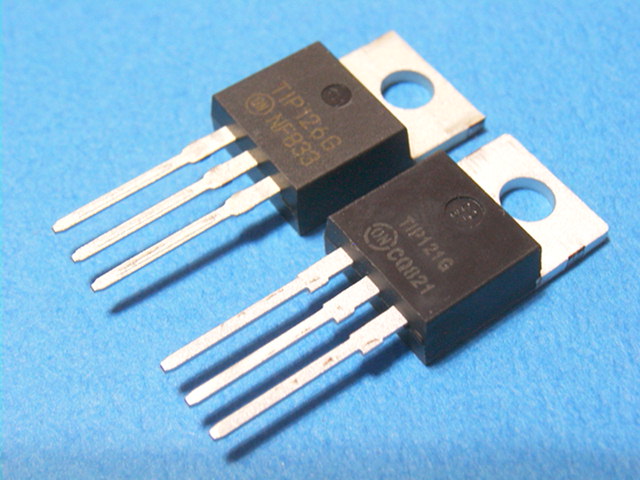

TIP121G, TIP126G

TIP121,TIP126

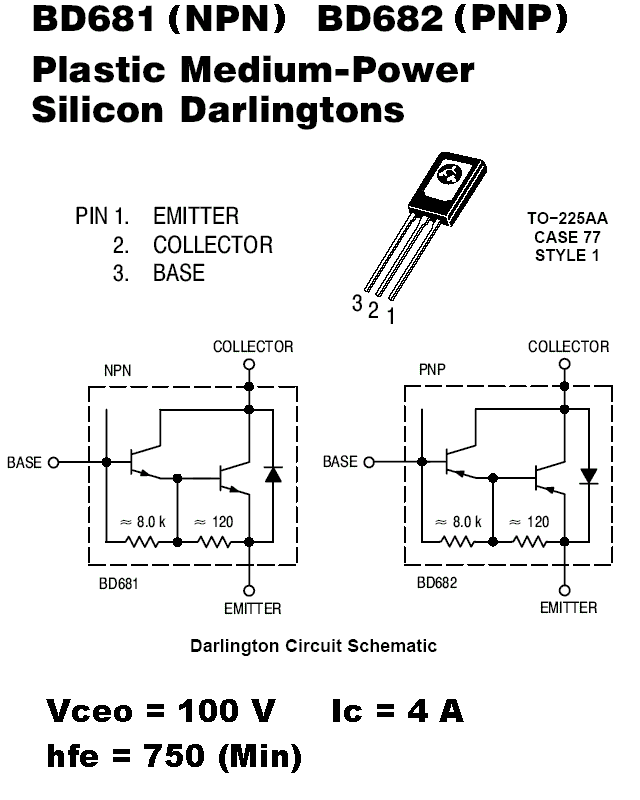

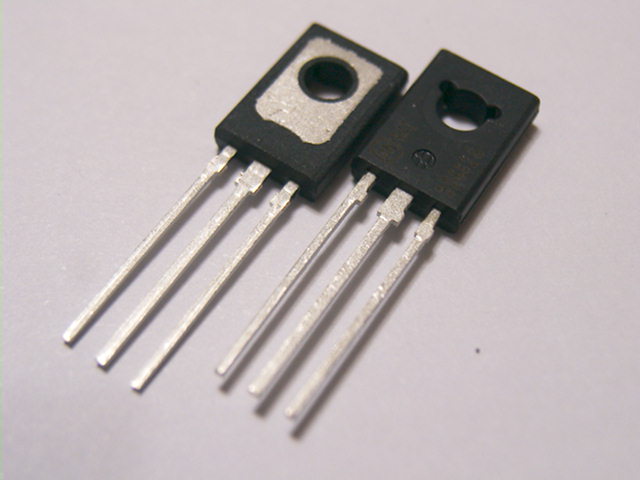

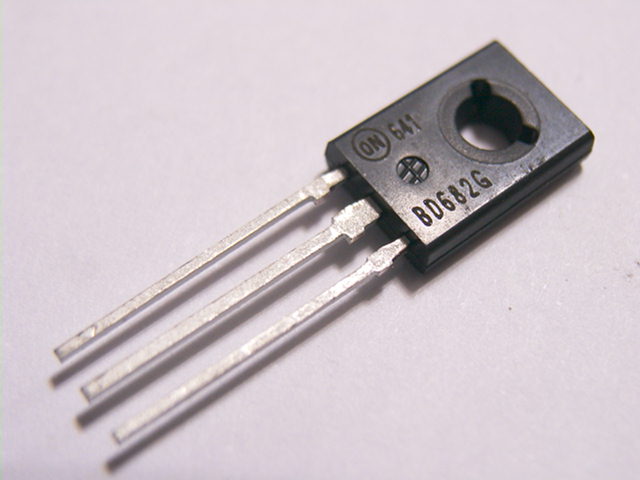

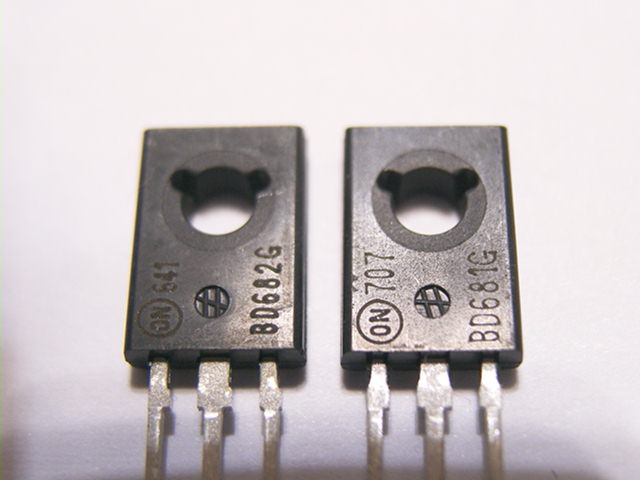

BD681, BD682

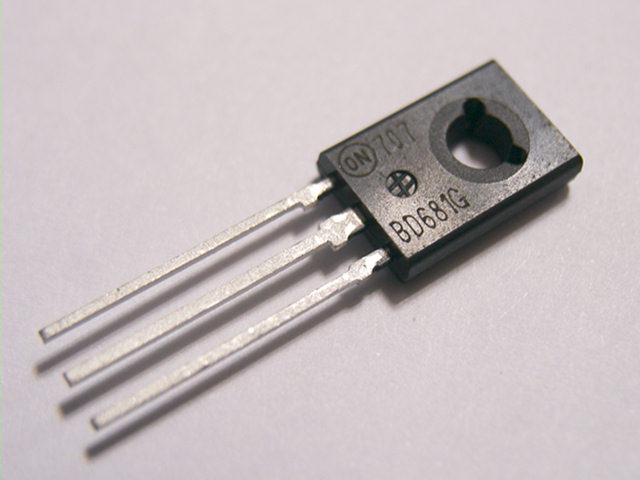

BD681G (NPN Darlington Transistor)

BD682G (PNP Darlington Transistor)

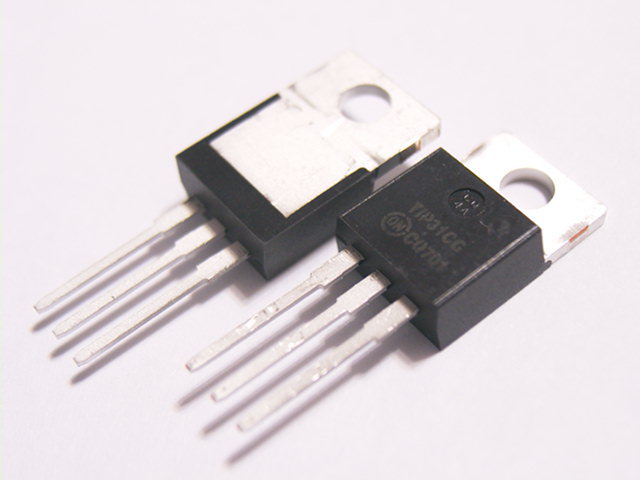

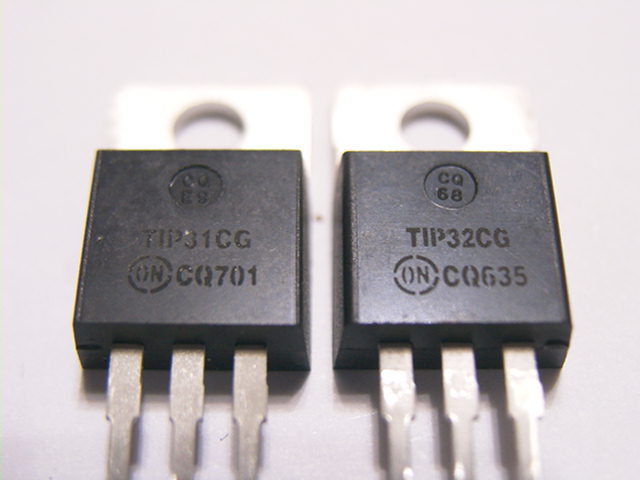

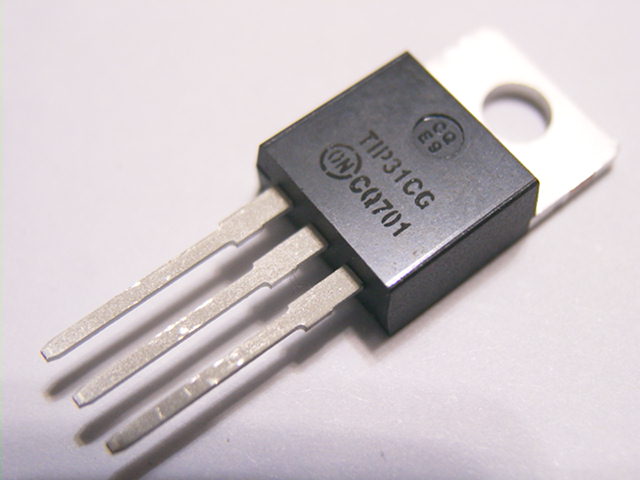

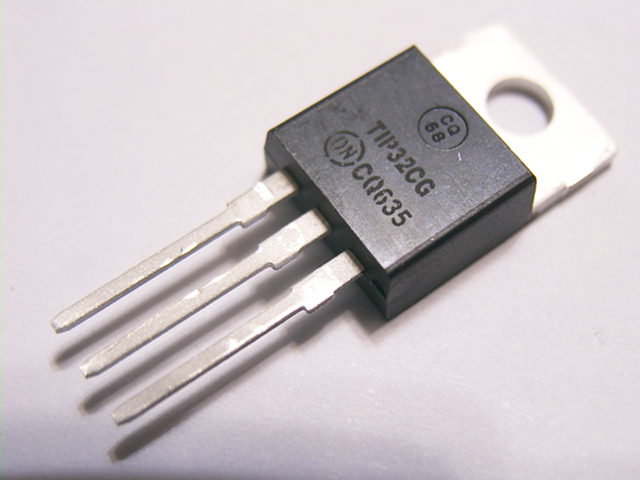

TIP31C, TIP32C Power Transistor

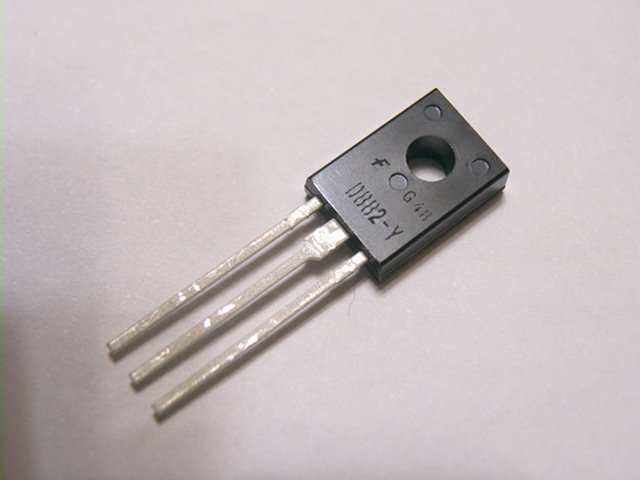

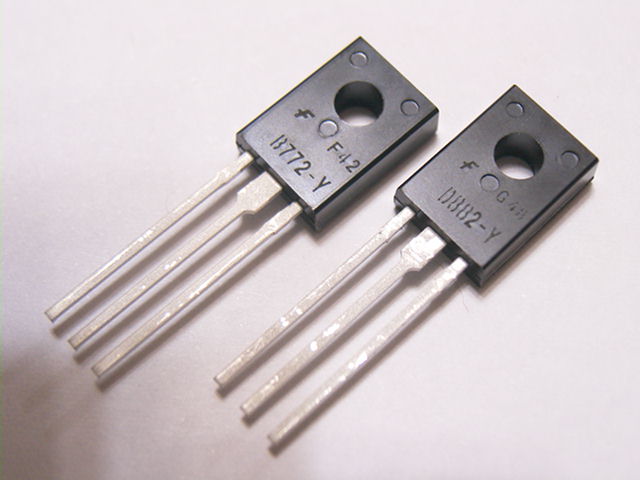

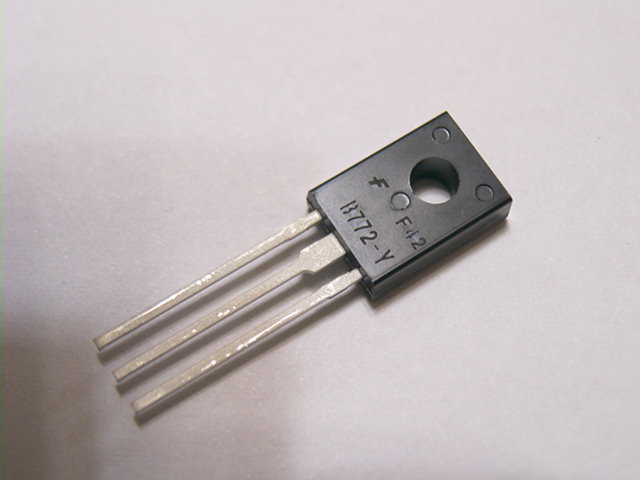

2SD882-Y, 2SB772-Y

2SD882 NPN Transistor

2SB772 PNP Transistor

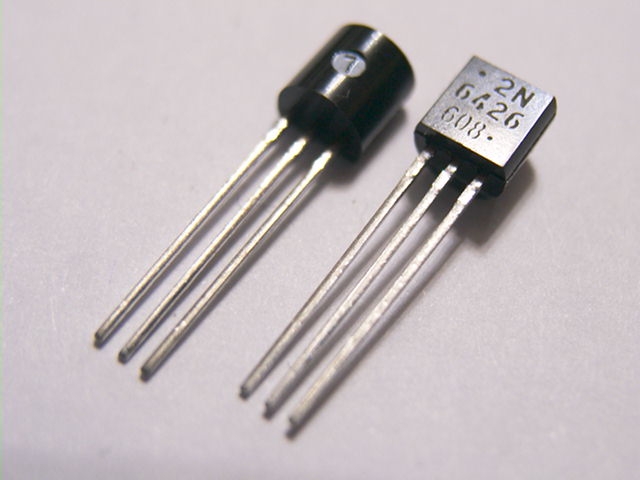

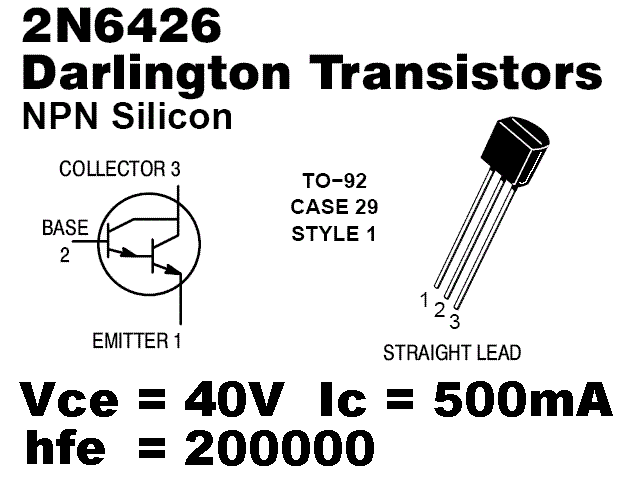

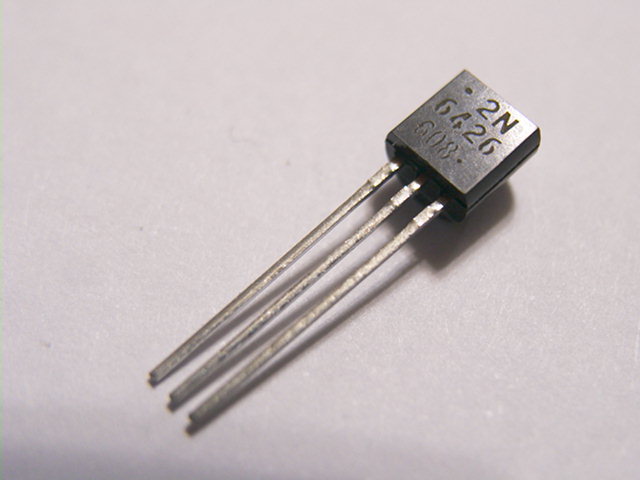

2N6426 NPN Darlington Transistor

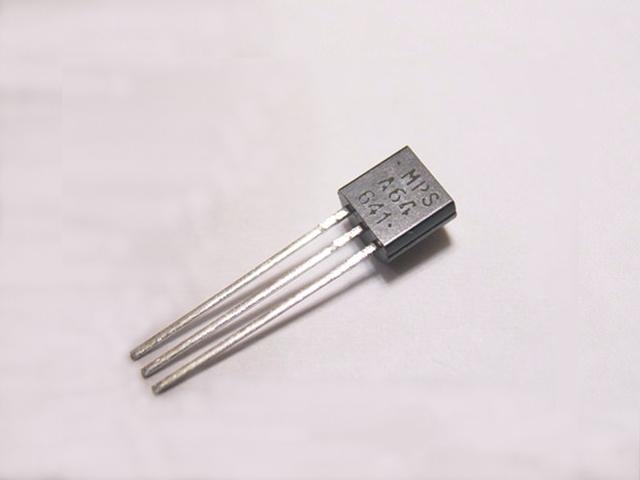

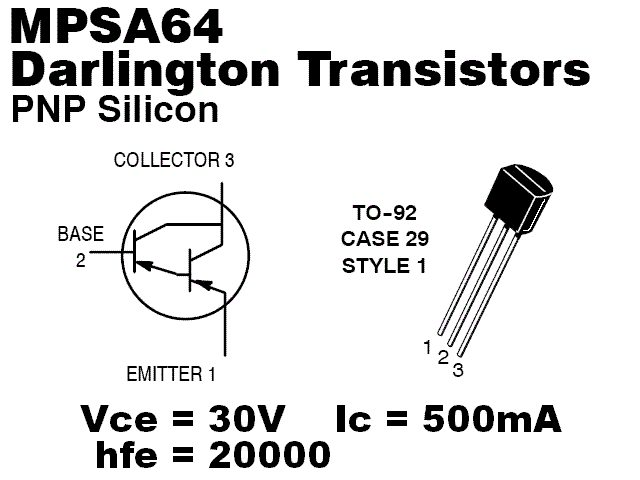

MPSA64G (PNP Darlington Transistor)



MOS FET

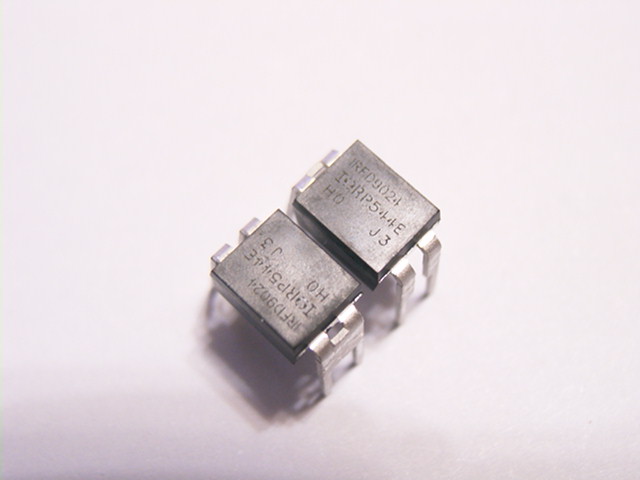

 IFRD9024
P Channel VDSS = - 60V RDS(ON) = 0.28 Ohm ID = -1.6A


IRFD9210
P Channel VDSS = - 200V RDS(ON) = 3.0 Ohm ID = -0.40A

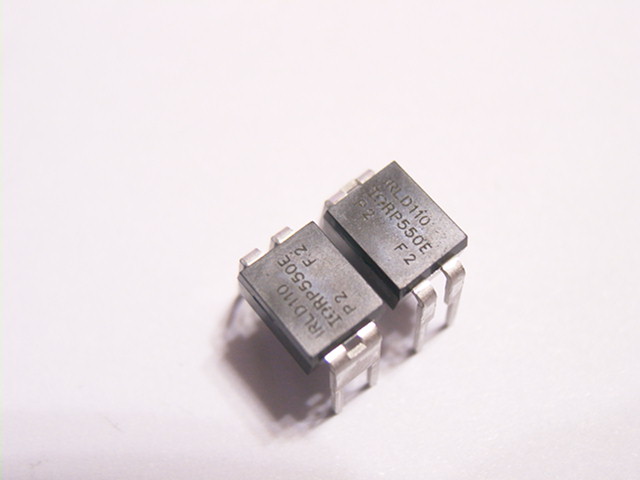

IRLD110
N Channel LOGIC Level  VDSS = 100V RDS(ON) = 0.54 Ohm ID = 1.0A

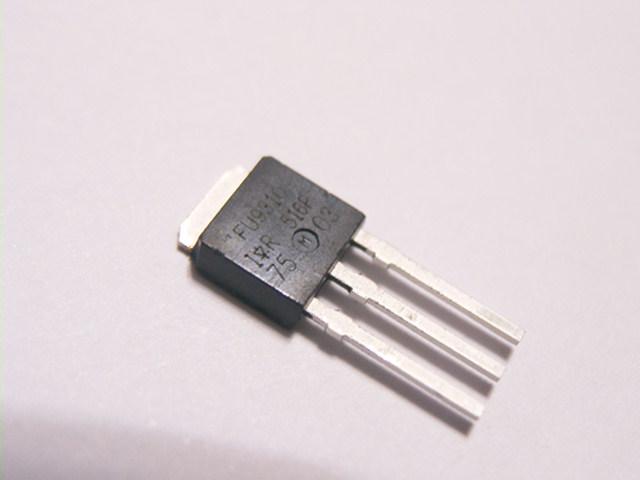

IRFU9310
P Channel VDSS = -400V RDS(ON) = 7.0 Ohm ID = -1.8A

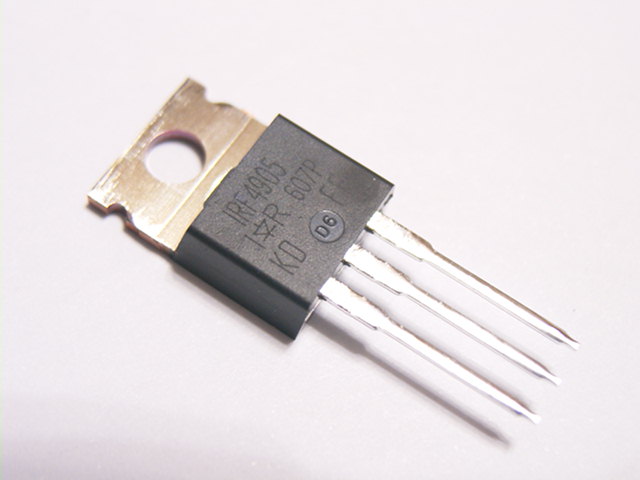

IRF4905
P Channel VDSS = - 55V RDS(ON) = 0.02 Ohm ID = -74A

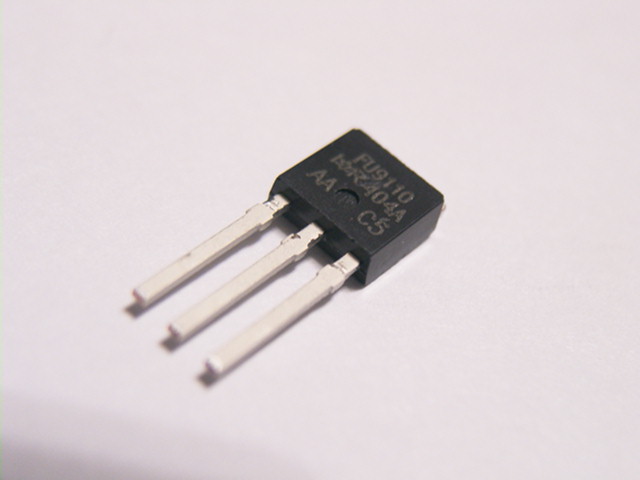

IRFU9110
P Channel VDSS = -100V RDS(ON) = 1.2 Ohm ID = - 3.1A

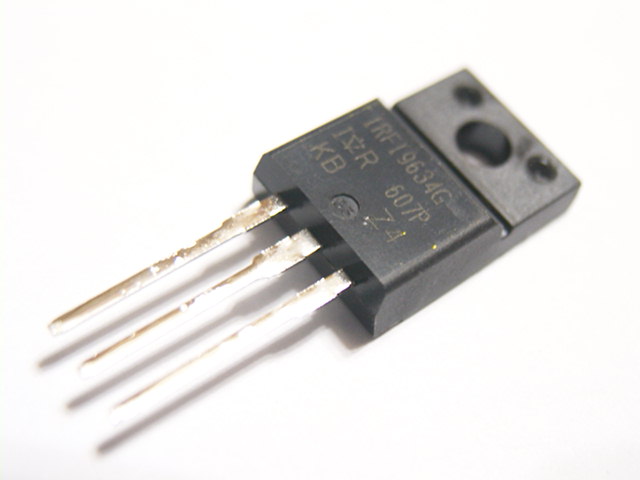

IRFI9634G
P Channel VDSS = - 250V RDS(ON) = 1.0 Ohm ID = - 4.1A

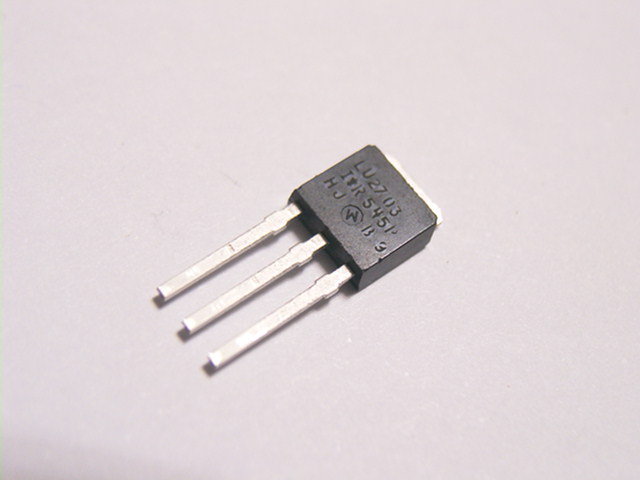

IRLU2703
N Channel Logic Level VDSS = 30V RDS(ON) = 0.045 Ohm ID = 23A

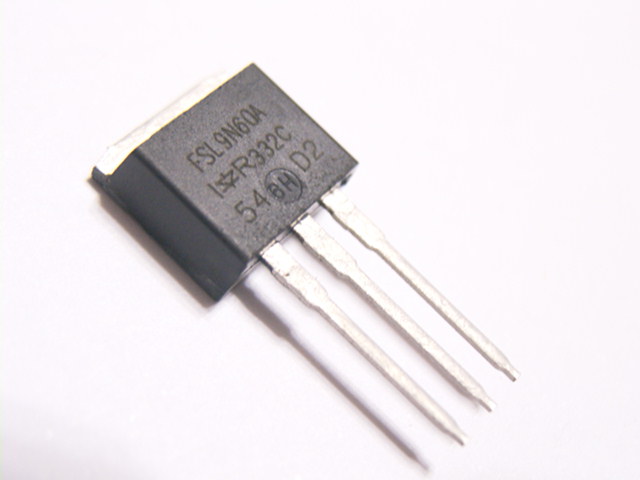

IRFSL9N60A
N Channel VDSS = 600V RDS(ON) = 0.75 Ohm ID = 9.2A

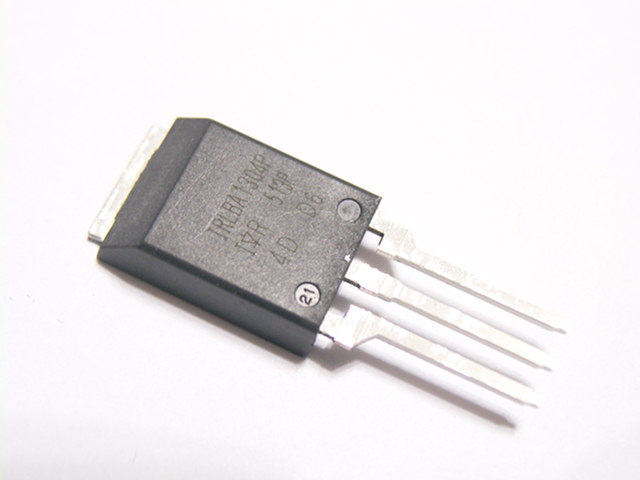

IRLBA1304
N Channel Logic Level VDSS = 40V RDS(ON) = 0.004 Ohm ID = 185A





Photovoltatic ISOLATOR

광발전 아이솔레이터

광발전 방식 ISOLATOR를 사용하면 TTL/CMOS 전류출력으로 절연 상태에서
FET 제어가 가능하며 P 채널 FET에서
레벨컨버팅 회로가 간단히 실현됩니다.

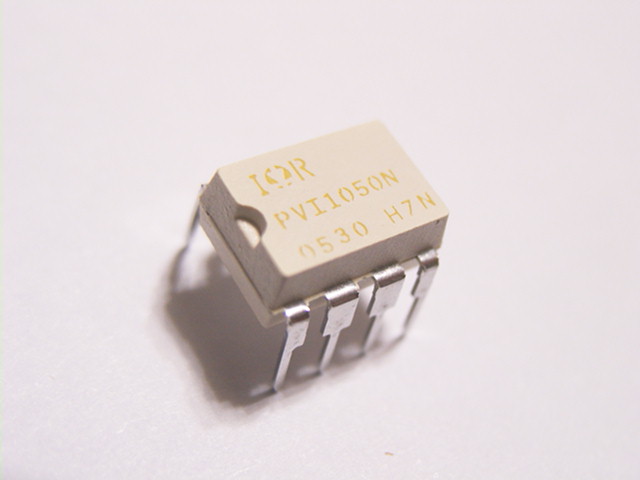

PVI1050
Photovoltatic Isolator : 8V , 10uA출력





가 격 정 보

Part .
ESM6045(ISOTOP) NPN Darlington 450V, 84A,
hfe > 120
ESM5045(ISOTOP) NPN Darlington 450V, 84A,
hfe > 150
MJ11032 (TO-3) NPN Darlington 120V, 50A,
hfe > 1000
MJ11033 (TO-3) PNP Darlington 120V, 50A,
hfe > 1000
MJ11016 (TO-3) NPN Darlington 120V, 30A,
hfe > 1000
MJ11015 (TO-3) PNP Darlington 120V, 30A,
hfe > 1000
TIP121G (TO-220) NPN Darlington 80V, 5A,
hfe > 1000
TIP126G (TO-220) PNP Darlington 80V, 5A,
hfe > 1000
BD681G (TO-225) NPN Darlington 100V, 4A,
hfe > 750
BD682G (TO-225) PNP Darlington 100V, 4A,
hfe > 750
TIP31C (TO-220) NPN 100V, 3A
TIP32C (TO-220) PNP 100V, 3A
2SD882 (TO-126) NPN Transistor
2SB772 (TO-126) PNP Transistor
2N6426 (TO-92) NPN Darlington 40V, 500mA,
hfe > 200,000
MPSA64 (TO-92) PNP Darlington 30V, 500mA,
hfe > 20,000



Part Ch Logic Package VDS RDS(ON) ID
IRFD9024 P   4 Pip DIP - 60V 0.28 - 1.6A
IRFD9210 P   4 Pip DIP - 200V 3.0 - 0.40A
IRLD110 N Logic 4 Pip DIP 100V 0.54 1.0A
IRFU9310 P   TO-251AA - 400V 7.0 - 1.8A
IRF4905 P   TO-220AB - 55V 0.02 - 74A
IRFU9110 P   TO-251AA - 100V 1.2 - 3.1A
IRFI9634G P   TO-220
FULLPAC
- 250V 1.0 - 4.1A
IRLU2703 N Logic TO-251 30V 0.045 23A
IRFSL9N60A N   TO-262 600V 0.75 9.2A
IRLBA1304 N Logic TO-220 40V 0.004 185A
PVI1050 Photovoltatic Isolator 8 Pin Dip
